Replacement counterbalance springs for

Henderson

garage doors

HOW TO ORDER
Identify the spring type you require from the details provided, click 'Buy Now' then follow the on-screen instructions


Note: Garage door springs tend to fail within a year of each other so we recommend they are replaced in pairs, therefore we don't supply springs individually.

 Take care to cross-check the spring dimensions & other details carefully as springs ordered in error and returned for refund will be subject to a 20% charge to cover our admin & shipping costs.

Spring characteristics are determined by more factors than just the dimensions or number of turns so you must ensure that the colour coding, diameter, length and the number of turns of your original springs match all the information given beside the replacement and that your door is fitted with Henderson lifting gear before ordering.

Need help identifying your door gear manufacturer? Click here



PLEASE NOTE:  A signature will be required on delivery of springs details

D.I.Y. guide to replacing springs

Click image to enlarge

Pattern counterbalance springs for the Henderson 'Dolphin' range
These 'pattern' replacement springs are manufactured to the original Henderson specification

Green springs - our ref: APH130 - price per pair £ inc VAT
(as Henderson part No: 028563)  approximate dimensions:
length over coils 21.5" - 1½" dia. - 98 coils - wire dia. 6.25mm
used on the following Henderson doors:
Doric single retractable 8' 0" to 9' 0" wide
Dolphin double doors 12' 6" to 14' 6" wide
Qty of pairs in stock:
Grey springs - our ref: APH120 - price per pair £ inc VAT
(as Henderson part No: 028532) approximate dimensions:
length over coils 21.5" - 1½" dia. - 99 coils - wire dia. 5.75mm
used on the following Henderson doors:
Dolphin double retractable doors 10' 2" to 12' 6" wide
Merlin & Dolphin retractable doors 7' 0" to 8' 0" wide
Regent retractable doors 7' 0" to 7' 6" wide
Gloucester, Sovereign, Warwick and Lincoln doors 7' 0" W x 6' 6" H and 7' 0" W x 7' 0" H
Henderson Ultra 100 from 7' 0" W x 6' 6" H to 8' 0" W x 7' 0" H
Qty of pairs in stock:
Yellow springs - our ref: APH110 - price per pair £ inc VAT
(as Henderson part No: 028570) approximate dimensions:
length over coils 21" - 1½" dia. - 99 coils - wire dia. 5.5mm
used on the following Henderson doors:
Bergen, Chevron & Classic retractable doors 7' 0" W x 6' 6" H and 7' 0" W x 7' 0" H
Qty of pairs in stock:

Note: Henderson Dolphin springs are colour coded to match the size/weight of
the door and should be replaced with the same colour springs as the originals

Note: order by 1pm for same day despatch

 Replacement spring tensioning bolts

Click image to enlarge

 M8 x 200mm spring tensioning bolts - £12.50 per pair inc VAT
Qty in stock:



Henderson 'Ultra' Mk2 spring with 'hook' adjuster bolt

Pattern counterbalance springs for the Henderson 'Ultra' range
These 'pattern' replacement springs are manufactured to the original Henderson specification
'Ultra 150 Mk1' springs - our ref: APH140
approximate dimensions:
length over coils 520mm (20½") 47mm dia. - 82 coils
(the adjuster bolts are at the bottom and have hex heads)




price per pair without adjusting bolts - £137.50 inc VAT
price per pair to include adjusting bolts - £154.24 inc VAT
Availability: despatched direct from our supplier (order by 1pm for same day despatch)
'Ultra 150 Mk2' springs - our ref: APH150
approximate dimensions:
length over coils 420mm (16½") 54mm dia. - 62 coils
(these springs include top mounted hook adjuster bolts our Ref: APH151)

price per pair complete with adjuster bolts - £ inc VAT
Qty of pairs in stock:
'Ultra 210' springs - our ref: APH210
approximate dimensions:
length over coils 620mm (24½") 49mm dia. - 86 coils
(the adjuster bolts are at the bottom and have hex heads)




price per pair without adjusting bolts - £145.70 inc VAT
price per pair to include adjusting bolts - £162.44 inc VAT
Availability: despatched direct from our supplier (order by 1pm for same day despatch)
'Ultra 225 Mk2' springs - our ref: APH225
approximate dimensions:
length over coils 520mm (20½") 64mm dia. - 62 coils
(these springs include top mounted hook adjuster bolts our Ref: APH226)

price per pair complete with adjuster bolts - £ inc VAT
Qty of pairs in stock:

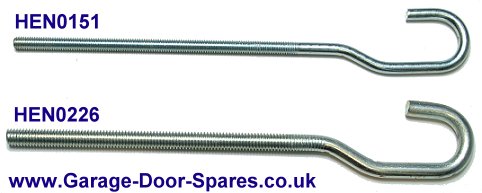

Replacement 'J' adjuster hook-bolts to suit Henderson Ultra Mk2 springs

Click image to enlarge

J bolt to suit Ultra 150 Mk2 spring
overall length 29.1cm with 3/8" Whitworth thread
(refer to Ultra 150 Mk2 spring dimensions above)
Qty in stock:
our Ref: APH151 - price per pair £ inc VAT
J bolt to suit Ultra 225 Mk2 spring
overall length 31.6cm with 1/2" Whitworth thread
(refer to Ultra 225 Mk2 spring dimensions above)
Qty in stock:
our Ref: APH226 - price per pair £ inc VAT

Need help identifying
your door ?

Send us a digital image of your door lifting mechanism and we'll do our best to identify the make & model >> details

 Important Note:
Spring characteristics are determined by more factors than just the physical dimensions so it is vitally important that you correctly identify your door manufacturer & spring type before ordering replacement springs.   If you incorrectly identify some replacement springs and they prove to be the wrong type for your door and you need to return them a 20% restocking charge will be made to cover our admin & shipping costs - see our terms & conditions

PLEASE NOTE:  A signature will be required on delivery of springs

Springs are despatched by courier, if you are not at home to sign for the parcel 8.30am - 5.30pm Monday – Friday, please provide an alternative address on our on-line order checkout page



All our prices include VAT

Free Delivery Option
on Mainland UK orders over £35

We do not export springs overseas
