Spare parts to suit Birtley garage doors
roller spindles, locks, springs, cones & cables

Note: Birtley garage doors have ceased trading and the items listed below
are a range of pattern parts that closely match the original Birtley products

Click image to enlarge

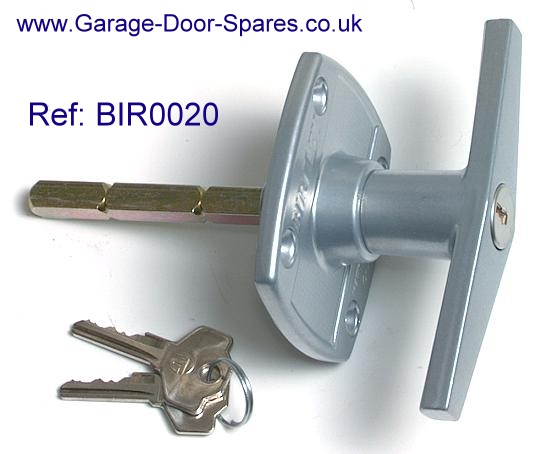

Birtley locking 'T' handle with four front fixing holes
Has a 70 x 64mm face-plate with four 5mm CSK fixing holes spaced 40mm horizontally, 46mm vertically and a 84mm long x 8mm square shaft which can be easily cut down to match the length of your original.
supplied with two keys - colour: silver grey

Our ref: APB0020  Qty in stock:
price:
inc VAT

Note: it may be necessary to enlarge the central hole in the
door to accept this replacement handle due to design change.




Click image to enlarge

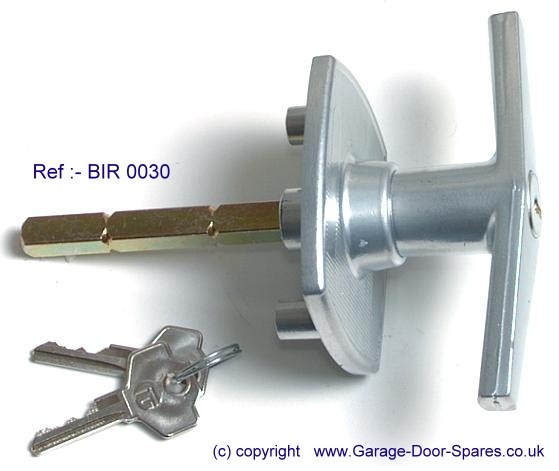

Birtley locking 'T' handle - rear fixing
Has a 70 x 64mm face-plate with two 13mm long M5 threaded fixing spigots spaced 51mm apart and a 84mm long x 8mm square shaft which can be easily cut down to match the length of your original
supplied with two keys - colour: silver grey

Our ref: BIR0030  Qty in stock:
price: inc VAT




Click image to enlarge

Black locking 'T' handle & keys
Has a 76 x 44mm face-plate with two 13mm long M6 threaded fixing spigots spaced 51mm apart and a 79mm long x 8mm square shaft which can be easily cut down to match the length of your original - supplied with fixing screws & two keys - colour: black

Our ref: CAR0050  Qty in stock:
price:  inc VAT




Click image to enlarge

Two point locking cam with outer pivot holes
at 75mm spacing, fits 8mm square lock shaft.
Suits doors with either sliding bar locking
or cable operated sprung latches
supplied with 8mm pivot pins & starlock fixing washers

Our ref: APL0140
  Qty in stock:
price:
inc VAT


Click image to enlarge

Eurolock barrel with three keys
(suitable for garage doors fitted with a Eurolock)

Nickel 40mm long - 12.95 inc. VAT - Qty in stock:
Brass 40mm long - 12.95 inc. VAT - Qty in stock:
Nickel 50mm long - 17.50 inc. VAT - Qty in stock:
Brass 50mm long - 17.50 inc. VAT - Qty in stock:
Nickel 55mm long - 17.50 inc. VAT - Qty in stock:
Brass 55mm long - 17.50 inc. VAT - Qty in stock:
Nickel 70mm long - 18.50 inc. VAT - Qty in stock:
Brass 70mm long - 19.95 inc. VAT - Qty in stock:
Brass 80mm long - 18.95 inc. VAT - Qty in stock:

choose barrel type:

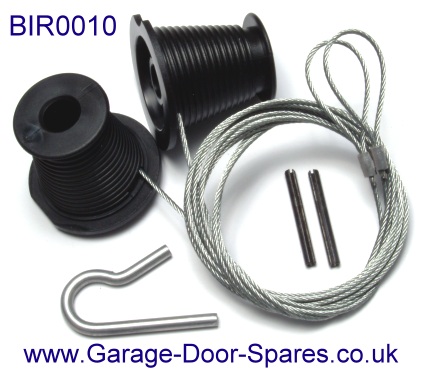

Cones & cables for Birtley canopy type doors
two 4mm roll-pins supplied -
fitting instructions

Our ref: BIR0010  Qty in stock:
price: per pair inc VAT


Click image to enlarge

Long nosed 4mm pin punch
for driving out roll-pins from canopy door cones
(an essential tool when replacing canopy cones & cables)

Our Ref: T3328 10  Qty in stock:
price inc VAT


Click image to enlarge

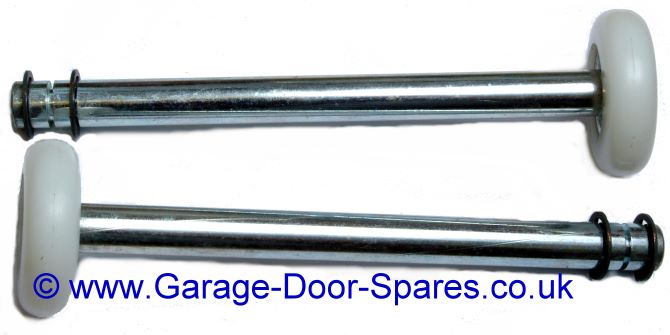

Roller spindles for Birtley horizontally tracked doors
wheel dia = 45.5mm
shaft dia. 12.7mm
overall length 167mm

Our ref: APB70
Qty in stock:
price: per pair
inc VAT




Click image to enlarge

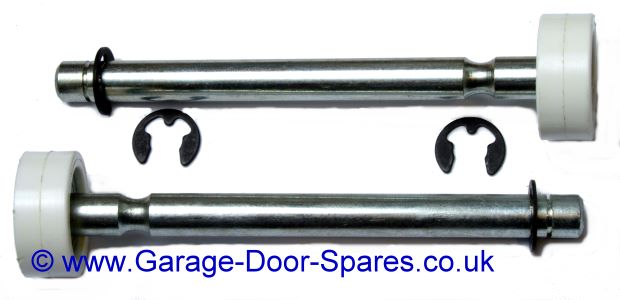

Roller spindles for Birtley canopy doors
wheel dia = 32mm
shaft dia.11mm
overall length 141mm

Our ref: APB40
Qty in stock:
price: per pair
inc VAT




Click image to enlarge

Graphite Lock Lubricating Powder
Graphite powder is a dry compound which is ideal
for lubricating garage door locks, car door locks and
outside padlocks etc. to prevent sticking and extend
the life of the lock by reducing wear and corrosion.
Unlike oil, Graphite powder won't attract a build-up
of dirt & grime and it cannot freeze.

The 50g puffer dispenser with it's pointed probe
ensures quick & simple application to any lock

Our Ref: K30050
Qty in stock:
price: inc VAT




Counterbalance springs for Birtley doors
Our replacement springs are manufactured to the original Birtley specification
HOW TO ORDER
Identify the spring type you require from the details provided, click 'Buy Now' then follow the on-screen instructions

Note: Garage door springs tend to fail within a year of each other so we recommend they are replaced in pairs, therefore we don't supply springs individually.

 Take care to cross-check the spring dimensions & other details carefully as springs ordered in error and returned for refund will be subject to a 20% charge to cover our admin & shipping costs.

Spring characteristics are determined by more factors than just the dimensions or number of turns so you must ensure that the colour coding, diameter, length and the number of turns of your original springs match all the information given beside the replacement and that your door is fitted with Birtley lifting gear before ordering.

Need help identifying your door gear manufacturer? Click here

D.I.Y. guide to replacing springs

Counterbalance springs for 'EasyFix' cantilever type canopy type doors

Click image to enlarge

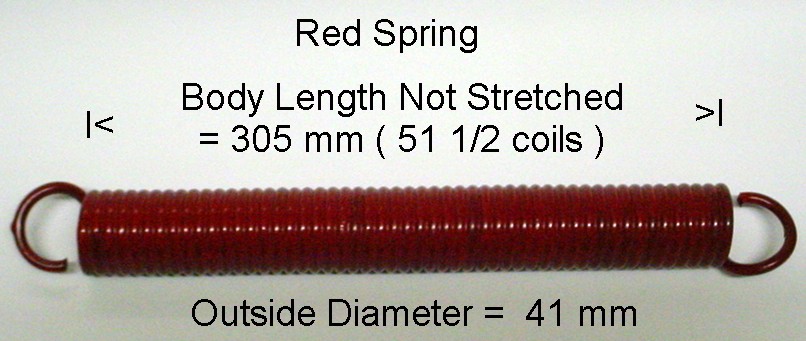

Birtley red spring
used on 7' 0" high canopy doors
approximate dimensions:
body length (closed) = 305mm 51 coils
wire diameter = 5.89mm

(as Henderson part No: 018759 used on Henderson E2 tracked gear from 1992)

Our ref: BIR0060 (prev. BIR3000)
price per pair
inc. VAT


Click image to enlarge

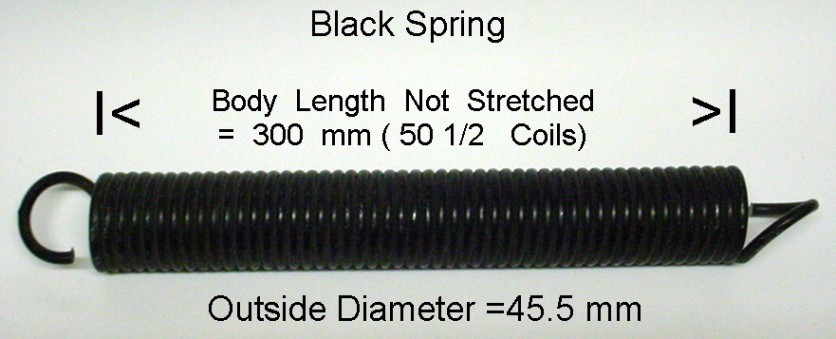

Birtley black spring
used on  6' 6" high canopy doors
approximate dimensions:
body length (closed) = 300mm 50 coils
wire diameter = 5.89mm

Our ref: BIR3010
price per pair
inc. VAT


Counterbalance springs for Birtley horizontally tracked doors (retractable)
Click image to enlarge

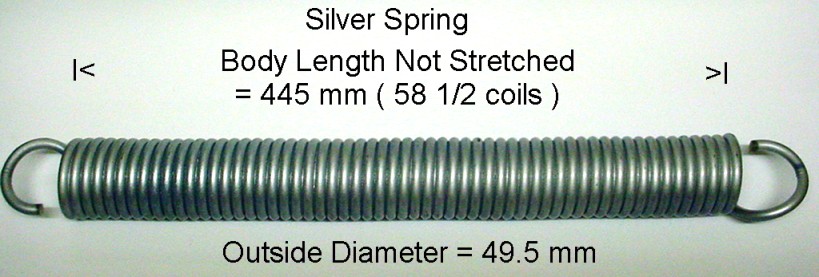

Birtley silver spring
approximate dimensions:
body length (closed) = 445mm 58 coils
wire diameter = 7.62mm

Our ref: BIR3030
price per pair
inc. VAT


Click image to enlarge

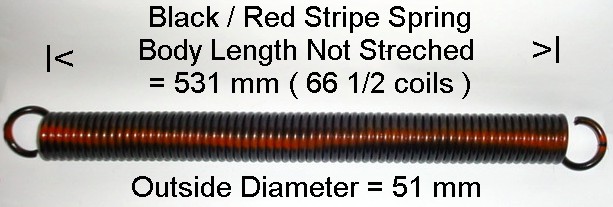

Birtley black/red stripe spring
approximate dimensions:
body length (closed) = 531mm 66 coils
wire diameter = 7.94mm

Our ref: BIR3040
price per pair
inc. VAT


Click image to enlarge

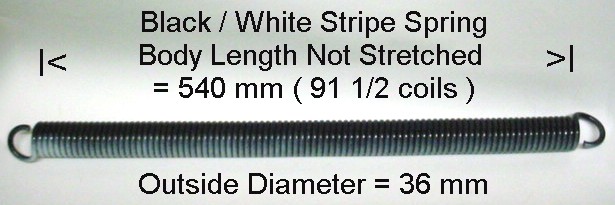

Birtley black/white stripe spring
body length (closed) = 540mm 91 coils
wire diameter = 5.89mm

Our ref: BIR3045
price per pair
inc. VAT


Click image to enlarge

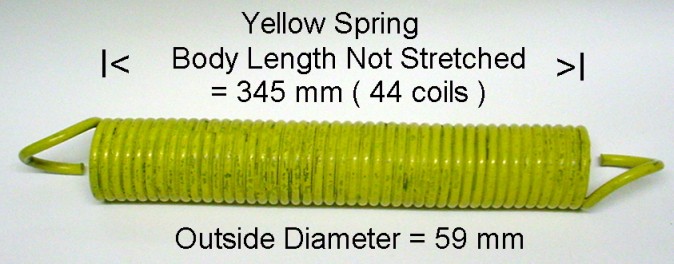

Birtley yellow spring
approximate dimensions:
body length (closed) = 345mm 44 coils
wire diameter = 7.62mm

Our ref: BIR3080
price per pair
inc. VAT


Click image to enlarge

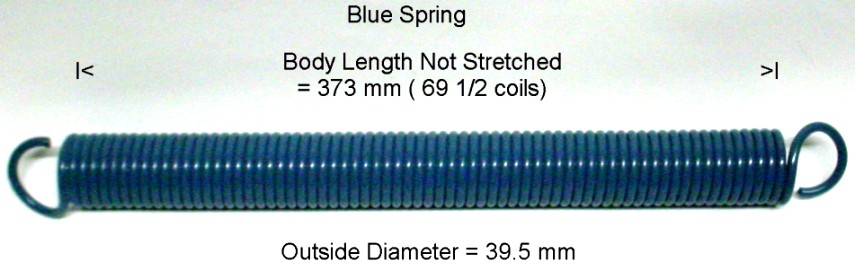

Birtley royal blue spring
approximate dimensions:
body length (closed) = 373mm 69 coils
wire diameter = 5.38mm

Our ref: BIR3090
price per pair
inc. VAT


Click image to enlarge

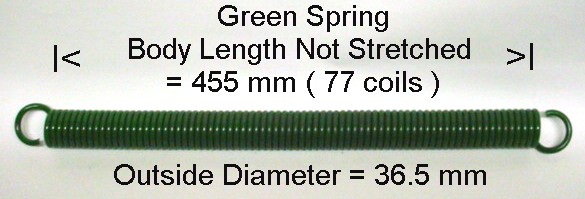

Birtley green spring
approximate dimensions:
body length (closed) = 455mm 77 coils
wire diameter = 5.89mm

Our ref: BIR3100
price per pair
inc. VAT


Click image to enlarge

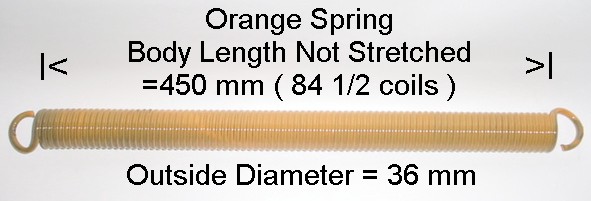

Birtley orange spring
approximate dimensions:
body length (closed) = 450mm 84  coils
wire diameter = 5.38mm

Our ref: BIR3110
price per pair
inc. VAT


Click image to enlarge

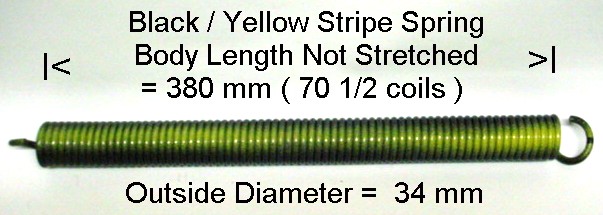

Birtley black/yellow stripe spring
approximate dimensions:
body length (closed) = 380mm 70  coils
wire diameter = 5.38mm

Our ref: BIR3120
price per pair
inc. VAT


Click image to enlarge

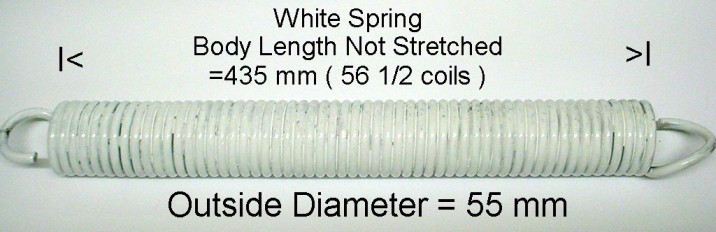

Birtley white spring
approximate dimensions:
body length (closed) = 435mm 56  coils
wire diameter = 7.62mm
Our ref: BIR3130
price per pair
inc. VAT



Note: These springs are colour coded to match the size/weight of the door
and should be replaced with the same colour springs as the originals

Availability: springs are delivered within 2-3 working days by courier direct from our supplier

PLEASE NOTE:  Springs are delivered by courier between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature on delivery
so please bear this in mind when you specify the delivery address

We do not export springs overseas

If the spares for your Birtley door are no longer available it may be possible to
refurbish your existing door by fitting a replacement door support gear kit >> details

Replacement spring adjusting bolts

Click image to enlarge

 Spring tensioning bolt

bolt size:



  M8 x 200mm  - price: 12.50  - Qty in stock:
M10 x 200mm - price: 14.00 - Qty in stock:
M10 x 250mm - price: 14.90 - Qty in stock:

Free Delivery Option to most UK destinations
on orders over 50

Same day despatch on orders submitted by 3pm
Next-day delivery also available*
(*on orders placed Mon to Thurs only)

choose 'next-day' delivery at the on-line checkout
