Canopy door roller spindles, cones & cables for
Also Apex, B&Q, Bonsack, Wessex & Wickes garage doors
(as these are manufactured by Cardale)

Cardale Garage Doors

Click image to view the full range & prices

Support cables & cones
for Cardale canopy type doors
Click image to view the full range & prices

Roller spindles

for Cardale canopy type doors


 'Eurolock' handle

Click image to view the full range & prices

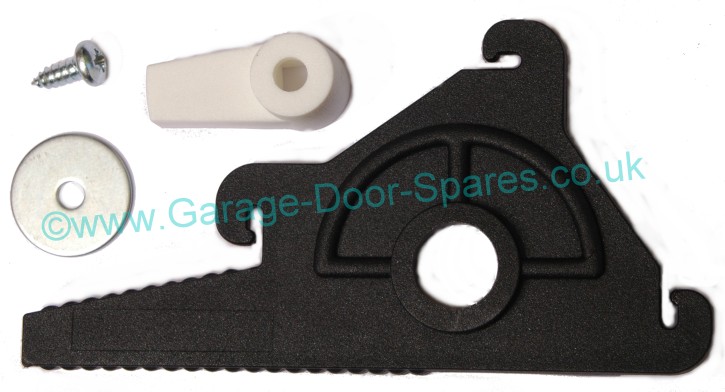

latch lever and cam

Replacement handles to suit all Cardale garage doors

Click image to enlarge

Black plastic coated steel latch cable
(as used on all Cardale doors manufactured pre 1999
& fitted with cable operated latches)
overall dia. 2mm - length 2.5Mtr with adjuster clip

our Ref: APL0180  Qty in stock:
price:
inc VAT (individually)
10% discount for two or more

Note: our replacement latch cables are supplied as illustrated with a loop pre-formed & crimped on one end only, if you don't require a pre-formed loop you can cut the cable down as required and form your own loop using the clip provided

Qty:

Click image to enlarge

Stranded steel wire rope latch cable
(as used on all Cardale doors manufactured since 1999)
length 3.0Mtr with adjuster clamp

our Ref: APL0185  Qty in stock:
price: inc VAT (individually)
10% discount for two or more

Qty:

Click image to enlarge

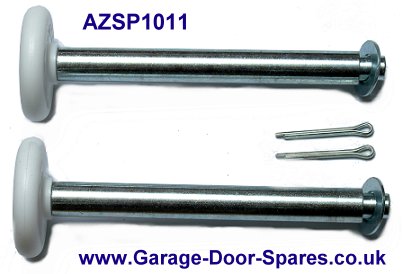

Roller spindles for Cardale 'Slideaway'
horizontally tracked doors
shaft dia = 13mm - wheel dia. 43.5mm
overall length 135mm

Pattern part as Cardale Ref: AZSP1011
(no longer available from Cardale)

our Ref: CAR0090

price per pair:
inc VAT  Qty in stock:


Pivot arms for Cardale double width 'Slideaway' retractable doors

azsp3202l.jpg - door arm

Arm length 110.5cm to suit pre- April 2005 doors 6' 6" to 7' 0" high

Pair of pattern replacement arms manufactured to
the original Cardale AZSP3202L specification

Price per pair inc VAT
Qty of pairs in stock:

(these arms are no longer available from Cardale)




Counterbalance springs for Cardale 'Slideaway' horizontally tracked doors

All our prices include VAT

PLEASE NOTE:  Signature Required on Delivery of Springs (see below)

   D.I.Y. guide to replacing springs  •

Note: Garage door springs tend to fail within a year of each other so we recommend
they are replaced in pairs, therefore we don't supply springs individually


Cardale AZSP 3302 series spring

Springs for Cardale Slideaway doors manufactured before Sept 1998

Genuine Cardale springs ref: AZSP3302K - price per pair inc VAT
identification: black body
length over coils 395mm - diameter 40mm - wire dia. 5mm

(used on pre-Jan 1997 Cardale Georgian doors 7' 6" x 6' 6" to 7' 6" x 7' 0" and all Ivanhoe doors)
Qty of pairs in stock:


Pattern springs as Cardale ref: AZSP3302B - price per pair inc VAT
(pattern replacement springs manufactured to the original Cardale specification)

identification: black body with blue paint on loop
approximate dimensions:
length over coils 480mm - diameter 40mm - wire dia. 5.38mm

(used on pre-Jan 1997 Cardale Futura range 8' 0" x 6' 6" doors
and GRP doors from 7' 0" x 6' 6" to 8' 0" x 7' 0")

Qty of pairs in stock:


Genuine Cardale springs ref: AZSP3302W
identification: black body with white paint on loop
approximate dimensions:
length over coils 475mm - diameter 40mm - wire dia. 6mm

(used on pre-Sept 1998 Cardale doors from approx 8' to 14' wide)
Discontinued



Pattern springs as Cardale ref: AZSP3302L - price per pair inc VAT
(pattern replacement springs manufactured to the original Cardale specification)

identification: black body with blue paint on loop
approximate dimensions:
length over coils 470mm - dia. 51mm - wire dia. 6.5mm - approx. 72 coils
(used on pre-Sept 1998 Cardale doors from approx 10' 7" to 15' wide)
Qty of pairs in stock:



Springs for Cardale Slideaway doors manufactured from Sept 1998 to 2006

Availability: email us to check                    Manufacturers Installation Manual (pdf download)

Genuine Cardale springs ref: AZSP 3304 - Blue coded (for doors 29 - 37 kgs)
length over coils 490mm excluding hooks x 40mm dia.




Price per pair 134.25 inc VAT
(all strengths)

Genuine Cardale springs ref: AZSP 3305 - Red coded (for doors 35 - 49 kgs)
length over coils 430mm excluding hooks x 40mm dia.
Genuine Cardale springs ref: AZSP 3306 - White coded (for doors 45 - 63 kgs)
Discontinued
Genuine Cardale springs ref: AZSP 3307 - Green coded (for doors 63 - 103 kgs)
length over coils 478mm excluding hooks x 52mm dia.
Genuine Cardale springs ref: AZSP 3308 - Yellow coded (for doors 95 - 125 kgs)
length over coils 478mm excluding hooks x 49mm dia.



Replacement tensioning bolts for use with the above springs

Click image to enlarge

10mm dia. x 200mm
14.00
per pair inc VAT
Qty in stock:
Note: early Cardale garage doors were originally supplied with imperial size adjusting bolts, therefore in order to fit replacement metric size adjusting bolts it may be necessary to enlarge the hole diameter in the spring anchor bracket to 10mm

Prices include VAT   -  Free Delivery Option on Mainland UK orders over 50


Entex springs for Cardale Slideaway doors up to 8' wide 1981 to 1996

Note:
horizontally tracked door springs should be replaced in pairs, one each side of the door

entex spring (2697 bytes)

Dimensions (all strengths) - length over coils 570mm (excluding loops) - diameter 24mm

'Blue tip' Entex springs - Cardale ref: AZSP3301B discontinued & replaced by AZSP3301P below
'Yellow tip' Entex springs - Cardale ref: AZSP3301Y discontinued & replaced by AZSP3301P below
'White tip' Entex springs - Cardale ref: AZSP3301W discontinued & replaced by AZSP3301P below
'Green tip' Entex springs - Cardale ref: AZSP3301G discontinued & replaced by AZSP3301P below
'Red tip' Entex springs - Cardale ref: AZSP3301R discontinued & replaced by AZSP3301N below

Cardale have introduced the following springs to replace
the discontinued Entex spring types listed above

Genuine Cardale 'Purple tip' Entex springs - ref: AZSP3301P
(for doors up to 7' 6" wide only)
Qty of pairs in stock:
price per pair
inc VAT
Genuine Cardale 'Brown tip' Entex springs - ref: AZSP3301N
(replacement for 'Red tip' springs)
Qty of pairs in stock:
price per pair
inc VAT

Installation Sheet for Cardale Slideaway doors up to 8' wide 1981 to 1995 (pdf download)

Cardale Maximizer Mk1 springs
for Cardale Slideaway gear up to 8' wide from 1996 to 2004
(Cardale 'Maximizer Mk1' doors have two springs on each side)

Click image to enlarge

Pattern Maximizer Mk1 spring - as Cardale ref: AZSP3303
dimensions - length over coils 570mm (excluding end loops) dia. 24mm

Qty of pairs in stock:

price per pair inc VAT

Note: These springs are no longer available from Cardale.  Our pattern
replacements are manufactured to the original Cardale specification.

 Installation Manual for Cardale 'Maximizer' doors from 1996 to 2004 (pdf download)

 Installation Manual for Cardale 'Maximizer' doors from 2000 to 2005 (pdf download)

Genuine Cardale 'Maximizer MkII' springs
for Cardale Slideaway gear from 2005 onwards

Cardale 'Maximizer Mk11' doors have a cluster of 3x springs on each side
(double doors have two clusters of 3x springs on each side)

Click image to enlarge

Maximizer II 'heavy' spring - Cardale ref: AZSP3311

Installation Manual for Cardale Maximizer II doors from 2005 onwards (pdf download)

Maximizer MkII 'light' springs - Cardale ref: AZSP3310
Description: light alloy colour with end loops
length 400mm excluding end loops, dia 19mm

price per pair inc VAT
Availability: email us to check


Maximizer MkII 'heavy' springs - Cardale ref: AZSP3311
Description: dark grey plated finish with end loops
(as illustrated)
length 420mm excluding end loops, dia 22mm

price per pair inc VAT
Availability: email us to check


HOW TO ORDER
Identify the spring type you require and select this type from the 'drop-down list' and click 'Buy Now' then follow the on-screen instructions



Note: Take care to confirm that your door was manufactured by Cardale and cross-check the spring dimensions carefully as springs ordered in error and returned for refund will be subject to a 20% charge to cover our admin & shipping costs

PLEASE NOTE:  Springs are delivered by courier between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature on delivery
so please bear this in mind when you specify the delivery address

We do not export springs overseas

Springs not in stock at our premises will be despatched by courier
direct from our supplier, order by 1pm for same day despatch

Free Delivery Option to most UK destinations
on orders over 50
