Garador

Note: Garador was formerly Westland Engineering Ltd (WEL),
then Caradon Catnic Ltd. - Garador is now owned by Hormann

Spring selection chart for Mk4 & 'F' type
steel framed vertically tracked canopy
style single width garage doors


(these spring assemblies are hidden inside the steel door-frame uprights)

Price per pair: 169.00 inc VAT

 Price includes carriage to most UK destinations

Fitting Instructions


Click image to enlarge

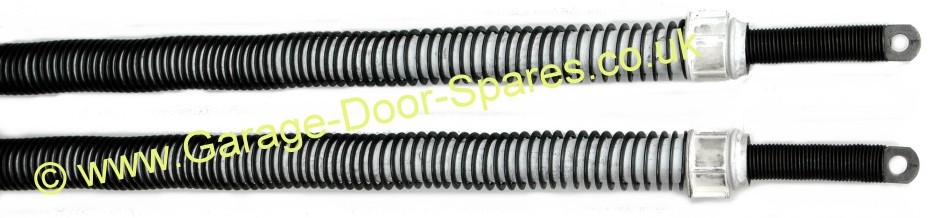

Pair of Garador S4 series spring assemblies

HOW TO ORDER
Identify the spring strength you require from the chart below and note the part number
then scroll to the bottom of the blue table and select the type from the 'drop-down'
list and click 'Buy Now' then follow the on-screen instructions



Spring selection table for Mk4 vertically tracked steel doors up to 8' 2" wide
Inside measurement
of the door frame
(not actual door size)

Width x Height
Horizon
& 90 Elite
(Ref: PN303)
Carlton
& 90 Elite
(Ref: PN307)
Georgian
Elite
(Ref: PN311)
Chevron
Elite
(Ref: PN315)
Parade
white/brown
Salisbury
Elite
Imperial Metric
6' 6" x 6' 3" 1980 x 1905 S4-401 S4-401 - - - -
6' 6" x 6' 6" 1980 x 1980 S4-401 S4-401 S4-402 S4-401 S4-402 -
6' 6" x 7' 0" 1980 x 2135 S4-402 S4-402 S4-404 S4-402 - -
7' 0" x 6' 6" 2135 x 1980 S4-401 S4-401 S4-404 S4-401 S4-404 S4-404
7' 0" x 7' 0" 2135 x 2135 S4-402 S4-404 S4-407 S4-402 S4-405 S4-405
7' 3" x 6' 4" 2220 x 1930 S4-401 S4-401 - - S4-404 S4-405
7' 5" x 6' 6" 2260 x 1980 S4-401 S4-402 S4-404 S4-402 S4-404 S4-405
7' 5" x 7' 0" 2260 x 2135 S4-404 S4-404 S4-404 S4-404 S4-405 S4-407
7' 6" x 6' 6" 2286 x 1980 S4-404 S4-402 S4-407 S4-402 S4-404 S4-405
7' 6" x 7' 0" 2286 x 2135 S4-404 S4-405 S4-407 S4-404 S4-405 S4-407
7' 8" x 6' 7" 2348 x 2000 S4-402 S4-402 S4-405 S4-404 S4-405 S4-405
7' 8" x 7' 0" 2348 x 2125 S4-405 S4-405 S4-407 S4-405 S4-407 S4-405
7' 10" x 6' 7" 2400 x 2000 S4-402 S4-404 S4-405 - - -
7' 10" x 7' 0" 2400 x 2125 S4-405 S4-405 - - - -
8' 0" x 6' 6" 2440 x 1980 S4-402 S4-404 S4-405 - S4-405 S4-407
8' 0" x 7' 0" 2440 x 2135 S4-405 S4-405 S4-407 - S4-407 S4-407
8' 2" x 6' 7" 2500 x 2000 S4-402 S4-404 - - - S4-407
8' 2" x 7' 0" 2500 x 2125 S4-405 S4-405 - - - S4-407

GRP & Timber Mk4 vertically tracked single doors up to 7' 6" wide
(doors made from 1989 to 1997)
Inside measurement
of the door frame
(not actual door size)

Width x Height

Wentwood Sherwood Tudor Seymour Wolsey Vertical
Redwood
Imperial Metric
7' 0" x 6' 6" 2135 x 1980 S4-402 S4-402 S4-402 S4-402 S4-402 S4-407
7' 0" x 7' 0" 2135 x 2135 S4-404 S4-404 S4-404 S4-404 S4-404 S4-407
7' 5" x 6' 6" 2260 x 1980 S4-404 S4-404 S4-404 S4-404 S4-404 S4-407
7' 5" x 7' 0" 2260 x 2135 S4-407 S4-407 S4-405 S4-405 S4-405 S4-407
7' 6" x 6' 6" 2286 x 1980 - - S4-404 S4-404 S4-404 -
7' 6" x 7' 0" 2286 x 2135 - - S4-405 S4-405 S4-405 -

Cedarwood Mk4 vertically tracked single doors up to 7' 6" wide
(doors made from 1989 to 1997)
Inside measurement
of the door frame
(not actual door size)

Width x Height

Vertical
Cedar
Chevron
Cedar
Diagonal
Cedar
Horizontal
Cedar
Imperial Metric
7' 0" x 6' 6" 2135 x 1980 S4-401 S4-402 S4-402 S4-402
7' 0" x 7' 0" 2135 x 2135 S4-402 S4-402 S4-404 S4-404
7' 5" x 6' 6" 2260 x 1980 S4-402 S4-402 S4-404 S4-404
7' 5" x 7' 0" 2260 x 2135 S4-402 S4-404 S4-405 S4-405
7' 6" x 6' 6" 2286 x 1980 S4-402 S4-402 - -
7' 6" x 7' 0" 2286 x 2135 S4-402 S4-404 - -

Timber Mk4 vertically tracked single doors up to 7' 6" wide
(doors made from 1997 onwards)
Inside measurement
of the door frame

Width x Height
Tudor Seymour Wolsey Vertical
Cedar
Chevron
Cedar
Imperial Metric
7' 0" x 6' 6" 2135 x 1980 S4-401 S4-401 S4-401 S4-402 S4-402
7' 0" x 7' 0" 2135 x 2135 S4-402 S4-402 S4-402 S4-402 S4-402
7' 5" x 6' 6" 2260 x 1980 S4-402 S4-402 S4-402 S4-402 S4-404
7' 5" x 7' 0" 2260 x 2135 S4-402 S4-402 S4-402 S4-402 S4-402
7' 6" x 6' 6" 2286 x 1980 S4-402 S4-402 S4-402 S4-402 S4-404

  Our Mk4 springs are pattern units made by a specialist spring manufacturer
to the original Garador specification and are covered by a 12 month warrantee

Note: we recommend that these spring assemblies are replaced
in pairs, therefore we don't supply them individually

•  Fitting Instructions  •

Price: 169.00 per pair inc VAT

Availability: despatched by courier direct from our supplier, order by 1pm for same day despatch

Take care to cross-check the details carefully as springs returned for refund
will be subject to a 20% charge to cover our admin & shipping costs

PLEASE NOTE:  A signature will be required on delivery of springs (see below)



Link Arms, spindles & roller plates for Garador type 'F' &
Mk4 steel framed vertically tracked canopy style doors

(Type 'F' & Mk4 doors have the springs located inside
the steel door frame uprights as shown above)

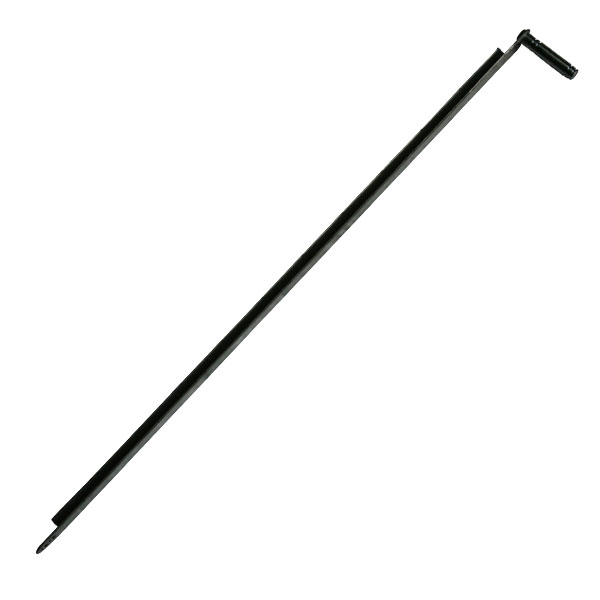

Mk4 (type F) canopy door link arm
Mk4 type F framed canopy door left link arm
(when viewed from inside garage)
our ref: GAR0232L - Garador Ref: SLA3

Qty in stock:
price: inc VAT
Mk4 type F framed canopy door right link arm
(when viewed from inside garage)
our ref: GAR0232R - Garador Ref: SLA4

Qty in stock:
price: inc VAT
Click images to enlarge

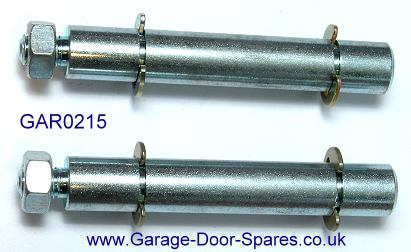

Pivot spindles - later type (circlip fitting)
overall length 89mm


Our Ref: GAR0215 - Garador ref: SST14
Qty in stock:
price: per pair
inc VAT

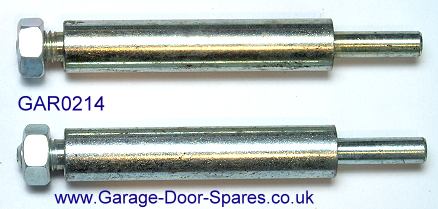

Pair of pivot spindles - early type
overall length 97mm

Availability: discontinued, no alternative available

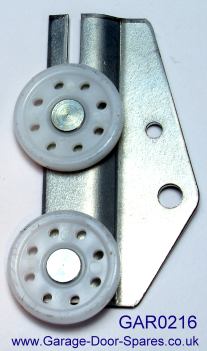

Roller plate assemblies with nylon wheels

Availability: discontinued, no alternative available




PLEASE NOTE:  Couriers normally deliver between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature so please
bear this in mind when you specify the delivery address

We do not export springs overseas

All our prices include VAT

Free Delivery Option to
most UK destinations
on orders over 50
