Click images to enlarge |
|
|
Early lozenge style handle
discontinued
(use new version) |

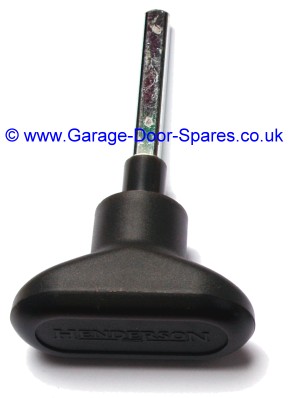

Current style handle
our ref: HEN0145 |
External handle
to suit post-1992 Henderson Merlin,
Victoria
& Doric steel doors without
a fascia plate
A direct replacement for the
old lozenge shaped Anthracite
handle illustrated far left. (suits steel doors from 1992 onwards)
64mm long x 8.9mm square shaft with M5 internal screw thread
overall length 130mm - as Henderson Pt No: 002294
Our Ref: HEN0145
price £
excl. VAT |
|
|
|
Note: The handles
illustrated are
for identification purposes only, the
handle we despatch will be a good
quality
unbranded pattern part.
Click image to enlarge

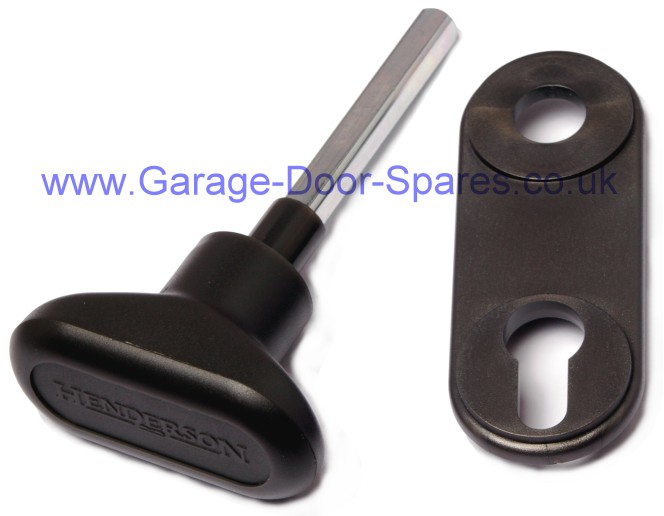

69.5mm Anthracite handle -
our ref: HEN0147
96.5mm Anthracite handle - our ref: HEN0148
Facia plate - our ref: HEN0158 |
External handle
to suit Henderson steel doors
A direct replacement for the old lozenge shaped Anthracite handle illustrated
top left.
(suits all post 1992 steel doors fitted with a fascia plate as illustrated)
69.5mm long x 8.9mm square shaft with M5 internal screw thread
overall length 135mm - as Henderson Pt No: 002295
(facia plate sold separately, see HEN0158 below)
Our Ref: HEN0147
price £
excl. VAT |
|
|
Anthracite external handle to suit
Henderson GRP doors (fibreglass)
A direct replacement for the early lozenge shaped Anthracite handle
illustrated top left. (suits all GRP doors from 1992 onwards)
96.5mm long x 8.9mm square shaft with M5 internal screw thread
overall length 161.5mm - as Henderson Pt No: 002296
(facia plate sold separately, see HEN0158 below)
Our Ref: HEN0148
price £
excl. VAT |
|
|
External facia plate
Henderson Pt No: 059193
(as used with Henderson handles Pt No: 002295 and
002296 above)
Our Ref: HEN0158
price £
excl. VAT |
|
|
|
Click image to enlarge
 |
Internal handle to suit the above Henderson handles
suits all Henderson doors from 1992 onwards
supplied with M5 fixing screw & washer
Henderson Pt No: 032028
Our Ref: HEN0149
price £
excl. VAT |
|
|
|
Replacement Eurolock barrels to suit post 1992 Henderson garage doors
(post 92 doors are fitted with a handle of the type detailed above) |
|
Click image to enlarge
Brass Eurolock barrel with
three keys for Henderson |
Brass barrel & keys - length 55mm
Our Ref: APL0250/55
price £14.58 excl. VAT |
|
Brass barrel & keys - length 80mm
Our Ref: APL0250/80
price £15.79
excl. VAT |
|
|
|
|
Locking 'T' handles to suit most pre-1992 Henderson doors
A range of good quality pattern handles that closely match the original Henderson product
Note: the design of the handle we supply may differ
slightly from
the images shown which are provided for identification only |
|
Click image to enlarge

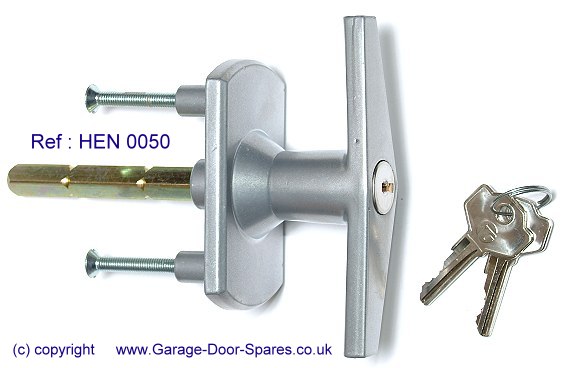

Locking 'T' handle with two 18mm long
threaded fixing spigots 51mm apart
Note: Early Henderson T handles had a flat 'link bar'
connecting them to an internal handle which had a central disengaging knob. These are now discontinued
|
|
Ref: HEN0050 (18mm fixing spigots)
|
Supplied with two keys & fixing screws etc and an 8mm square shaft approx 72mm long which
can be easily cut down to match the length of your original |
Silver grey finish
our Ref: HEN0050
price: £
excl. VAT |
|
|
Click image to enlarge
Silver grey finish
our Ref: HEN0120
price £
excl. VAT |
|
|
Locking 'T' handle with two 35mm long threaded fixing spigots
at 51mm
centres
Ref: HEN0120 & HEN0120
(35mm long fixing spigots) |
Click image to enlarge
Black finish
our Ref: HEN0130
price £
excl. VAT |
|
|
|
Supplied with two keys & fixing screws etc and an
8mm square shaft approx 75mm long which can be
easily cut down to match the length of your original |
|
|
|
Click image to enlarge
 |

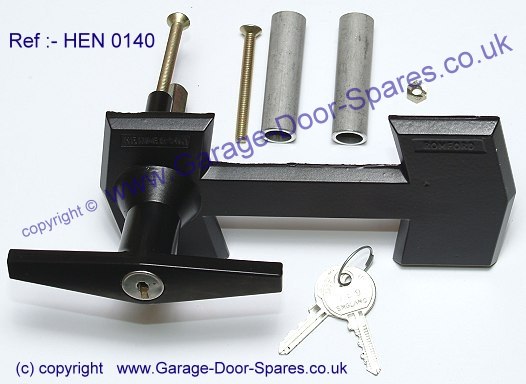

Locking handle for double-width
Henderson Doric doors
Ref: HEN0140
Discontinued
Note: this handle is discontinued but a standard 'T'
handle, our ref HEN0130 shown above can be used as an alternative and if you carefully cut
the decorative RH portion from the old facia plate and re-attach it to the door beside the HEN0130 handle
it will retain the visual appearance of the original handle. |
HEN0140
two 35mm long threaded fixing spigots
spaced 51mm apart & one M5 fixing |
|
Click image to enlarge
 |

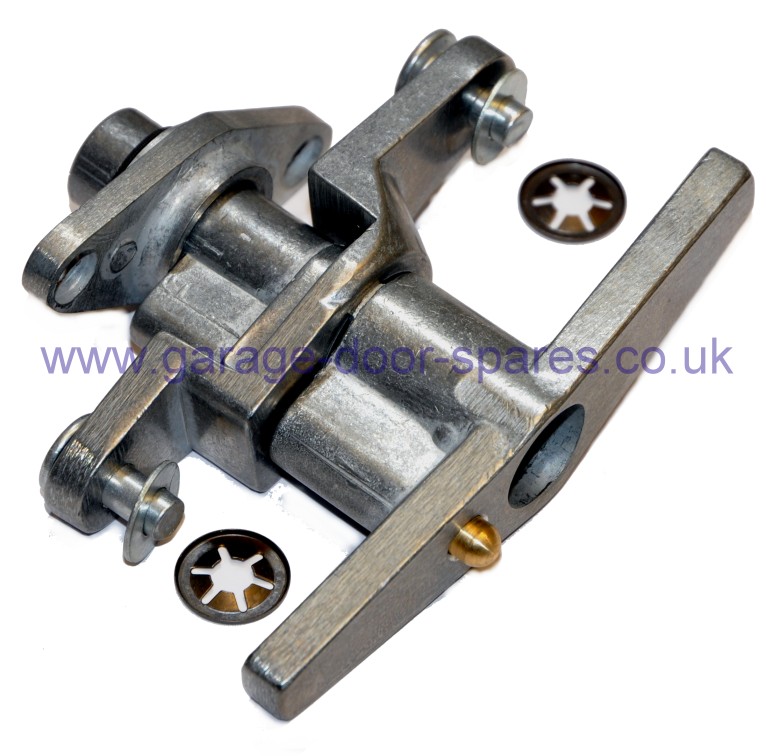

Internal handle to suit Henderson pre-premier range doors fitted with rigid bar
type locking, this device incorporates a manual release button to disengage the
locking system from the external locking handle to enable the door to be opened
from inside when the external handle is locked.
Discontinued - no
alternative available
|
HEN0060 |
|
|
Click image to enlarge
 |

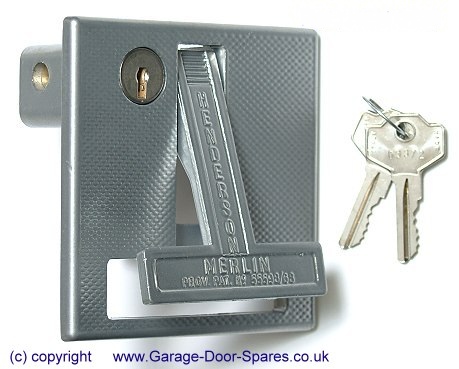

Flush lock assembly as fitted to
pre Jan 1987 Henderson Merlin doors
supplied with fixing screws & two keys
(as Henderson part No: 002039)
our Ref: HEN0090
price £
excl. VAT |
|
|
|
|
Click image to enlarge
 |
Graphite Lock Lubricating Powder
Graphite powder is a dry compound which is ideal
for lubricating garage door locks, car door locks and
outside padlocks etc. to prevent sticking and extend
the life of the lock by reducing wear and corrosion.
Unlike oil, Graphite powder won't attract a build-up
of dirt & grime and it cannot freeze.
The 50g puffer dispenser with it's pointed probe
ensures quick & simple application to any lockOur
Ref: K30050
price £ excl. VAT |
|
|
|
|
|
Click image to enlarge
 |
Replacement latch cable to suit
doors with cable operated latches
overall dia. 2mm - length 2.5Mtrs black plastic coated
steel cable
includes adjuster clip
our Ref: APL0180 / SWR0180
price £ excl. VAT (individually)
10% discount for two or more |
|
Note: our replacement latch cables are supplied as
illustrated with a loop pre-formed & crimped on one end only, if you don't
require a pre-formed loop you can cut the cable down as required and form your
own loop using the clip provided |
|
|
Click image to enlarge
 |
Replacement top latch
to suit Henderson canopy doors
bracket dimensions: 38mm x 39mm x 25mm
6mm dia. fixing hole pitch: 25mm x 17mm
supplied complete with 1.3Mtr black plastic
coated steel latch cable and adjuster clip
our Ref: HEN0330
price £ excl. VAT |
|
|
|
