Click image to enlarge
 |

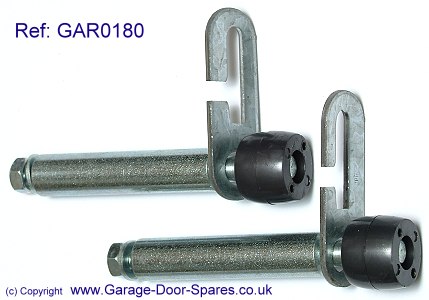

95mm guide rollers with spindles to suit Garador Mk3
vertically tracked canopy doors with an overhead
spring unit as shown here
(as Garador ref: S9200010 & 1158)
overall length 95mm - shaft dia: 12.7mm - wheel dia. 21mm
bolt fitting -
fitting instructions supplied
our Ref: GAR0180
price: £
per pair excl. VAT |
|
|
|
Click image to enlarge
 |

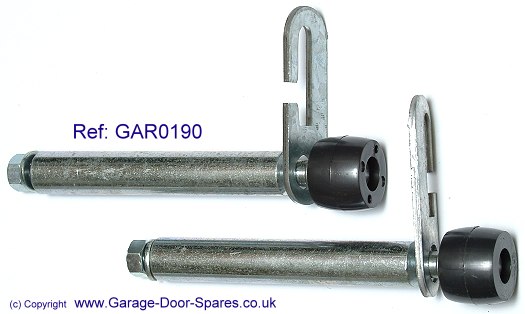

115mm guide rollers with spindles to suit early
Garador
Mk3 vertically tracked canopy doors
with an overhead spring unit as shown here
overall length: 115mm - shaft dia: 12.7mm - wheel dia. 21mm
bolt fitting
our Ref: GAR0190
price: £
per pair excl. VAT |
|
|
|
Click image to enlarge
 |

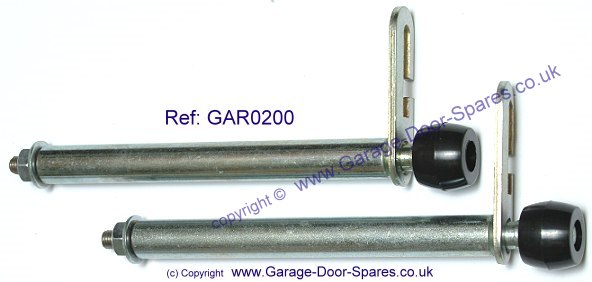

157mm guide rollers with spindles to suit Garador
type S/S vertically tracked canopy doors
overall length: 157mm - shaft dia: 12.7mm - wheel dia. 21mm
bolt fitting
our Ref: GAR0200
price: £
per pair excl. VAT |
|
|
|
Click image to enlarge
 |

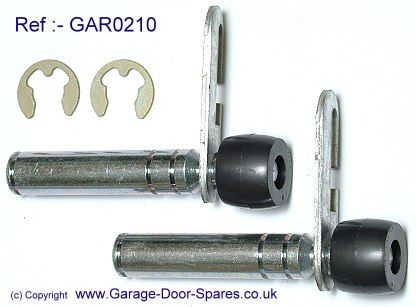

Circlip fitting guide rollers with spindles to suit pre 1999
Garador type 'C' vertically tracked canopy doors
with an overhead spring unit as shown here
overall length: 83mm - shaft dia: 12.7mm - wheel dia. 21mm
as Garador ref: PST15 & 1159
our Ref: GAR0210
price: £
per pair excl. VAT |
|
|
|
Click image to enlarge
 |
Circlip fitting guide rollers with spindles to suit 1999 - 2002
Garador type 'C' vertically tracked canopy doors
with side mounted springs as shown here
overall length: 92mm - shaft dia: 12.7mm - wheel dia. 21mm
as Garador ref: SG230-16
our Ref: GAR0221
price: £
per pair excl. VAT |
|
|
|
Click image to enlarge
 |
Replacement 21mm plastic guide rollers as fitted to
all the Garador canopy roller spindles shown above
our Ref: GAR0220
price: £
per pair excl. VAT |
|
|
|
Click image to enlarge
 |

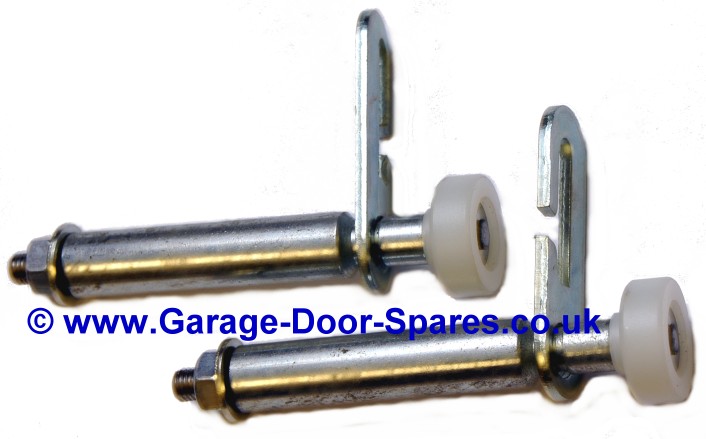

Guide rollers with spindles to suit early
Garador F3c
vertically tracked canopy doors - bolt fitting
overall length: 97mm - shaft dia: 12.7mm - wheel dia. 22mm
our Ref: GAR0140
price: £
per pair excl. VAT |
|
|
|
Steel support cables for Garador canopy type doors
Click image for replacement spring units
Garador overhead spring unit with removable plastic front cover
spring units: PN55/2, PN56/1, PN57/1, PN58, PN108, PN115, PN150, PN155 & PN167 |
| These cables suit all
Garador canopy doors with an overhead spring unit as illustrated above |
Click image to enlarge
| Note:
replacement of cables on early Westland Engineers steel fronted spring
boxes is not recommended - see note on fitting instructions for details |
|

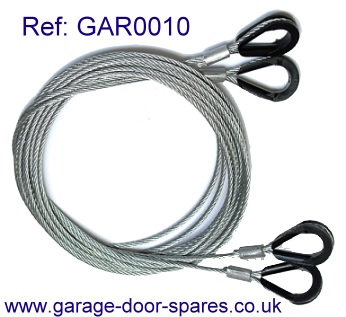

Steel support cables to suit pre 1999 Garador Mk2, Mk3, Mk3c,
type 'S/S'
& type 'C' vertically tracked canopy doors fitted with
an
overhead spring
box with removable plastic front cover as shown above. |
Support cables our Ref: GAR0010
(as Garador ref: P9900004)
To suit all doors from 7' to 8' 2" wide (frame aperture size)
with an overhead spring unit as
shown above
(including types: PN301, PN305,
PN309,
PN313, PN321,
PN322, PN323, PN324, PN325, PN326, PN327, PN328)
price £
per pair excl. VAT
|
|
Support cables our Ref: APG11 (as Garador ref: S9900004-3)
For all 6' 6" wide doors with an overhead spring unit as shown above
(including door types: PN329 & PN334)
price £
per pair excl. VAT
|
|
Support cables our Ref: GAR0020
(as Garador ref: S9900004-2)
For 14' wide 'Belgravia' doors with an overhead spring unit as shown above
(including door types: PN300 & PN330)
price £
per pair excl. VAT
|
|
|
Note: door dimensions quoted above refer to frame aperture size
Order before 2pm for same day despatch
•
Fitting Instructions •
|
|
|
Click image to enlarge
 |
Support cables to suit Garador type 'C'
vertically tracked canopy doors manufactured from 1999 to 2002
(these Garador's have one spring housed in a white plastic
vertical tube mounted on each side of the door behind the timber
frame upright as shown here)
suits all door sizes -
fitting instructions (as Garador ref: SG230.17)
our Ref: GAR0015
price: £
per pair excl. VAT |
|
|
|
 |
For
spares to suit Garador garage doors
manufactured since April 2002 Click Here |
|
Spindles & roller plates for Garador type 'F' & Mk4
steel framed vertically tracked canopy style doors
including the following: PN303, PN307, PN311 & PN315
(Type 'F' & Mk4 doors have the springs
located inside
the steel door frame uprights
as shown here)
Click images to enlarge
 |
Pivot spindles - later type (circlip fitting)
overall length: 89mm - shaft dia: 12.7mmour Ref: GAR0215
(as Garador ref: SST14)
price: £
per pair excl. VAT |
|
 |
Pair of pivot spindles - early type
overall length: 97mm - shaft dia: 12.7mm
our Ref: GAR0214
Discontinued
price: £
per pair excl. VAT |
|
 |
Roller plate assemblies with nylon wheels
left shown (viewed from inside garage)
Availability: discontinued - no alternative available
|
|
|
|
Click image to enlarge
 |

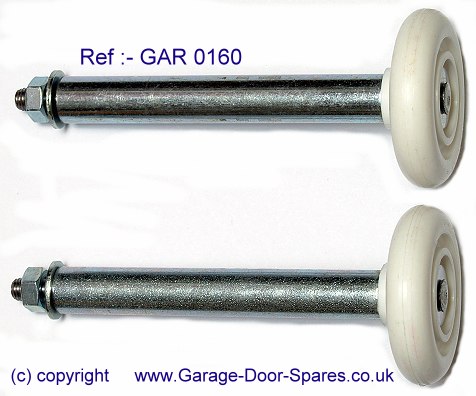

Plastic guide rollers & spindles to suit single width
Garador
horizontally tracked doors up to 8' wide.
shaft dia: 12.7mm - overall length: 118mm - wheel dia. 46mm
Non ball-raced
Note: these rollers are not suitable for double width Garador's.
our Ref: GAR0160
price: £
per pair excl. VAT
click here for replacement door support gear kits for obsolete doors |
|
|
|
Click image to enlarge
 |

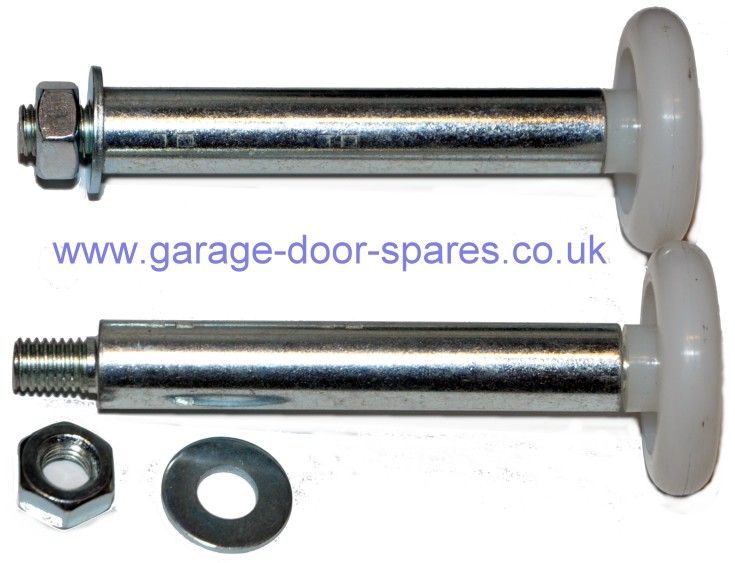

Plastic guide rollers & spindles to suit double width
Garador
horizontally tracked doors
shaft dia: 16 mm - overall length: 125mm - wheel dia. 46mm
Non ball-raced
our Ref: GAR0090
price: £
per pair excl. VAT
click here for replacement door support gear kits for obsolete doors |
|
|
