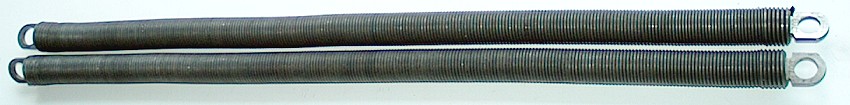

Garador S108 series counterbalance springs (supplied in pairs only)
HOW TO ORDER
Identify the spring strength you require from the chart below and note the part number
then scroll to the bottom of the blue table and select the spring type from the 'drop-down'
list and click 'Buy Now' then follow the on-screen instructions
Spring selection table for
Pre-2002
horizontally tracked steel doors 9' - 16' wide
Click Here for doors 6' 6" - 8' 2" wide
Inside measurement
of the door frame
(not actual door size)
Width x Height |
Horizon |
Carlton |
Georgian |
type
DC CM
(PN191) |
type DR
(PN181) |
type
DC CM
(PN192) |
type DR
(PN182) |
type
DC CM
(PN193) |
type DR
(PN183) |
|
Imperial |
Metric |
|
9' 0" x 6' 6" |
2743 x 1980 |
S108-709 |
S108-913 |
S108-713 |
S108-913 |
S108-721 |
S108-923 |
|
9' 0" x 7' 0" |
2743 x 2135 |
S108-713 |
S108-913 |
S108-713 |
S108-913 |
S108-723 |
S108-925 |
|
9' 4" x 6' 6" |
2855 x 1980 |
~ |
~ |
~ |
~ |
S108-721 |
S108-903 |
|
9' 4" x 7' 0" |
2855 x 2135 |
~ |
~ |
~ |
~ |
S108-723 |
S108-925 |
|
10' 0" x 6' 6" |
3050 x 1980 |
S108-709 |
S108-913 |
S108-713 |
S108-921 |
S108-723 |
S108-925 |
|
10' 0" x 7' 0" |
3050 x 2135 |
S108-713 |
S108-921 |
S108-723 |
S108-923 |
S108-723 |
S108-925 |
|
11' 0" x 6' 6" |
3355 x 1980 |
S108-713 |
S108-921 |
S108-721 |
S108-923 |
S108-725 |
S108-927 |
|
11' 0" x 7' 0" |
3350 x 2135 |
S108-723 |
S108-923 |
S108-725 |
S108-925 |
S108-725 |
S108-927 |
|
11' 8" x 6' 6" |
3560 x 1980 |
~ |
~ |
~ |
~ |
S108-725 |
S108-927 |
|
11' 8" x 7' 0" |
3560 x 2135 |
~ |
~ |
~ |
~ |
S108-701 |
S108-903 |
|
12' 0" x 6' 6" |
3660 x 1980 |
S108-721 |
S108-923 |
S108-723 |
S108-925 |
S108-727 |
S108-901 |
|
12' 0" x 7' 0" |
3660 x 2135 |
S108-725 |
S108-925 |
S108-727 |
S108-927 |
S108-727 |
S108-903 |
|
13' 0" x 6' 6" |
3965 x 1980 |
S108-725 |
S108-927 |
S108-727 |
S108-903 |
S108-705 |
S108-901 |
|
13' 0" x 7' 0" |
3965 x 2135 |
S108-727 |
S108-901 |
S108-703 |
S108-907 |
S108-709 |
S108-913 |
|
14' 0" x 6' 6" |
4270 x 1980 |
S108-727 |
S108-903 |
S108-701 |
S108-907 |
S108-707 |
S108-913 |
|
14' 0" x 7' 0" |
4270 x 2135 |
S108-703 |
S108-907 |
S108-705 |
S108-911 |
S108-711 |
S108-915 |
|
15' 0" x 6' 6" |
4575 x 1980 |
S108-701 |
S108-907 |
S108-703 |
S108-911 |
~ |
~ |
|
15' 0" x 7' 0" |
4575 x 2135 |
S108-705 |
S108-907 |
S108-709 |
S108-913 |
~ |
~ |
|
16' 0" x 6' 6" |
4880 x 1980 |
S108-705 |
S108-913 |
S108-707 |
S108-913 |
~ |
~ |
|
16' 0" x 7' 0" |
4880 x 2135 |
S108-709 |
S108-915 |
S108-711 |
S108-915 |
~ |
~ |
|
Note: double width Garador's are fitted with four springs (two each side) - see below for prices |
GRP & Timber horizontally tracked double door spring selector |
|
GRP double doors (pre 2002) |
Inside measurement
of the door frame
(not actual door size)
Width x Height |
Arden |
Kenmore |
Stamford |
Clifton |
|
Imperial |
Metric |
Type DC |
Type DR |
Type DC |
Type DR |
Type DC |
Type DR |
Type DC |
Type DR |
|
14' 0" x 6' 6" |
4270 x 1980 |
S108-725 |
S108-901 |
S108-725 |
S108-901 |
S108-725 |
S108-901 |
S108-725 |
S108-901 |
|
14' 0" x 7' 0" |
4270 x 2135 |
S108-727 |
S108-905 |
S108-727 |
S108-905 |
S108-727 |
S108-905 |
S108-727 |
S108-905 |
|
Timber double doors (pre 2002) |
Inside measurement
of the door frame
(not actual door size)
Width x Height |
Tudor |
Seymour |
Wolsey |
|
|
Imperial |
Metric |
Type DC |
Type DR |
Type DC |
Type DR |
Type DC |
Type DR |
|
14' 0" x 6' 6" |
4270 x 1980 |
S108-701 |
S108-901 |
S108-701 |
S108-901 |
S108-701 |
S108-901 |
|
14' 0" x 7' 0" |
4270 x 2135 |
S108-703 |
S108-903 |
S108-703 |
S108-903 |
S108-703 |
S108-903 |
|
Timber double doors (pre 2002) |
Inside measurement
of the door frame
(not actual door size)
Width x Height |
Vertical Cedar |
Sandhurst |
Spring Dimensions
S108-7** series springs are 685mm long
S108-9** series springs are 600mm long
(approximate length over the
coils excluding the loops) |
|
Imperial |
Metric |
Type DC |
Type DR |
Type DC |
Type DR |
|
14' 0" x 6' 6" |
4270 x 1980 |
S108-701 |
S108-911 |
S108-707 |
S108-907 |
|
14' 0" x 7' 0" |
4270 x 2135 |
S108-703 |
S108-911 |
S108-705 |
S108-911 |
|
Double width Garadors have four springs per door - replacement springs are supplied in pairs
and must be replaced as a pair. i.e. one new spring installed on each side of the door. |
|
(you can mix old & new springs but these must consist of one 'old' & one 'new' spring on each side of the door) |
Price per pair
S108-7** series springs: £199.00 excl. VAT
S108-9** series springs: £199.00 excl. VAT
Note: custom spring types not included in the
above table are subject to a £10 surcharge |
|
|
Availability: despatched by courier direct from our supplier, order by 1pm for same day despatch |
|
Notes regarding early Westland Garador doors:
Garador S108-9## series springs measure approximately 600mm (excluding the loops)
early type 'DR' & 'RM' Garador springs were approx. 45mm longer but these are discontinued. |
|
Replacement springs for early double width type 'R' and type PN87 doors with 'cranked' offset pivot arms are no longer available
as these doors are now obsolete, no alternative springs are available but we do stock a suitable door gear kit to enable full
refurbishment & automation.
click here for details |
Take care to cross-check the details carefully as springs returned for refund
will be subject to a 20% charge to cover our admin & shipping costs
D.I.Y. guide to replacing springs
|
 |
Spring pivot anchor pins
for Garador horizontally tracked doors
Overall length 100mm: - Garador Pt No. SG250-8
Price: £18.13 per pair -
Overall length 120mm - Garador Pt No. S108-159
Price: £18.96 per pair
-
|
|
PLEASE NOTE:
Springs are delivered by courier between 8.30am - 5.30pm
Monday to Friday and the driver will require a signature on
delivery
so please bear this in mind when you specify the delivery address |
|
Springs not in stock at our premises will be despatched by courier
direct from our supplier, order by 1pm for same day despatch
All our prices are subject to 20% UK VAT
|
|
Free Delivery Option to
most UK destinations
on
orders over £50
We do not export springs overseas |
|
