Click image to enlarge

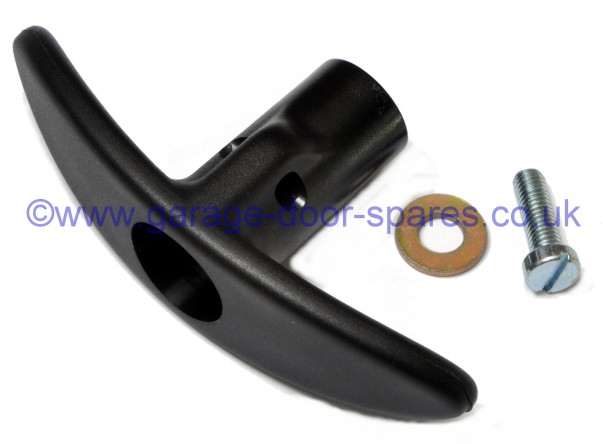

 | Plastic handle as fitted to Garador's from June 2003
Note: This handle has an 8.9mm square shaft with an
internal M5 thread, overall length including shaft 98mm.
(Internal handle & M5 fixing screw included)
Garador Ref:OJ-HDL-11805 - black plastic
our Ref GAR0135 Qty in stock:
price: £
inc VAT | |
|

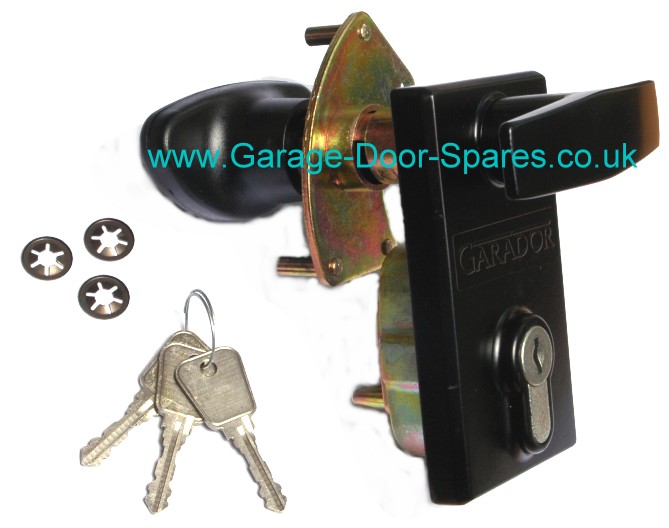

'Euro-lock' handle as fitted to most Garador's from July 1998 onwards | Click image to enlarge
 | 'Eurolock' handle assembly complete with eurolock barrel & three keys as fitted to Garador's from July 1998 onwards
facia plate dimensions: 112mm x 63mm
overall length of handle supplied is 111mm (see GAR0105 below)
Garador Pt No: OJ-HDL-11705our Ref: GAR0130 Qty in stock:
price: £
inc VAT (replacement handle & 40mm Eurolock barrel available separately, see below) | | Click image to enlarge

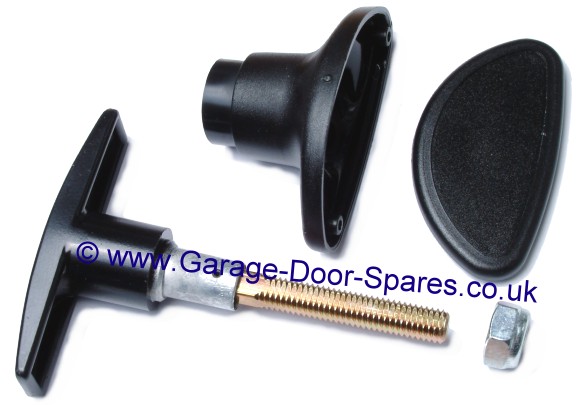

 | Replacement 'T' handle for Garador 'Eurolock'
as fitted to Garador's from July 1998 onwards (illustrated above)
These handles have an 8mm square shaft with M10 external thread
internal handle & M10 nyloc fixing nut included
Garador Ref: BLK-HAND-S overall length 111mm - our Ref GAR0105 - stock:
Garador Ref: BLK-HAND-L overall length 151mm - our Ref GAR0115 - stock:
price: £28.75 inc VAT |
|
|
Click image to enlarge

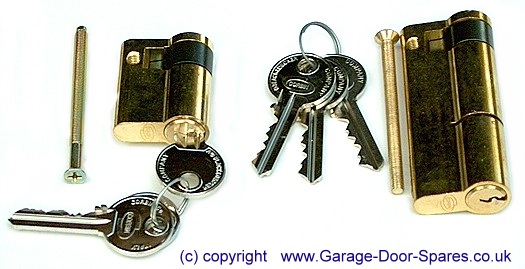

 | Replacement 'Euro-lock' barrel with three keys
to suit Garador's from 1994 onwardsNickel 40mm long - £14.95 inc. VAT - Qty in stock:
Brass 40mm long - £14.95 inc. VAT - Qty in stock:
Brass 50mm long - £17.50 inc. VAT - Qty in stock:
Brass 55mm long - £17.50 inc. VAT - Qty in stock:
Brass 70mm long - £17.50 inc. VAT - Qty in stock:
Brass 80mm long - £18.00 inc. VAT - Qty in stock:
|
|
Click image for further details
 | 'T' handle with two keys as fitted to most Garadors from 1984 to 1994 including types R, DR, DC, CM, Mk3C, Mk3R & Mk4, view in more detail
facia plate dimensions: 113mm x 64mm with four rear fixing spigots at 45mm x 78mm centres. Supplied with an 8mm square shaft approx 106mm long which can be easily cut down to match the length of your original. (this handle can also be used as a direct replacement for the horizontal lever handle version which are no longer available)
Supplied with fixing screws & spacers, one starlock washer and two keys
Pattern part to Garador Pt No: S1731040-10 spec. - Black finish
our Ref: GAR0050 Qty in stock:
price: £
inc VAT | |
|
Click for detailed image

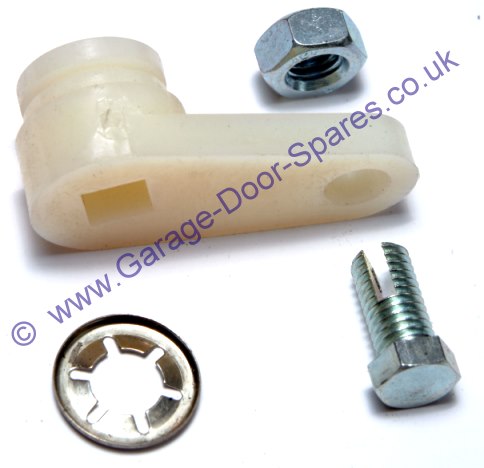

 | Plastic crank - split bolt type
as used on Garador type C & type F canopy doors
fitted with the type GAR0050 'T' handle shown above
(supplied with starlock washer, split bolt & nut)Our Ref: GAR0155 Qty in stock:
price: £ inc VAT | |
|
Click for detailed image

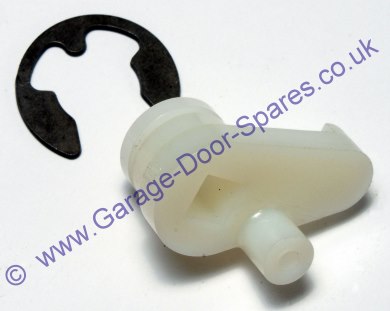

 | Plastic crank - circlip type
as used up to December 1993 on Garador type R, DR, DC & CM horizontally tracked doors with cable operated latches and fitted with the type GAR0050 'T' handle and an internal lever as shown below
Garador ref: 1170Our Ref: GAR0055 Qty in stock:
price: £ inc VAT Note: the white cam pictured left is for identification
purposes only, the current replacement cams are black | |
|
Click for detailed image

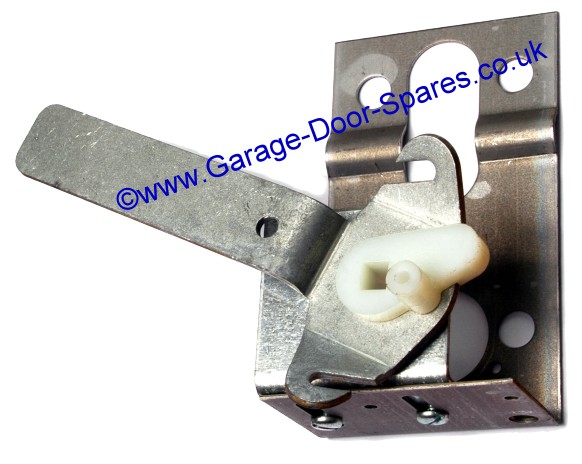

 | Inside handle assembly with plastic crank
(used in conjunction with a type GAR0050 'T' handle, this
item was fitted to Garador type R, DR, DC & CM horizontally
tracked doors with cable operated latches up to December 1993)
Garador Pt No SR001-60Note: discontinued - replacement plastic cam is available see above | |
|
• Replacement Keys • |
Click image to enlarge

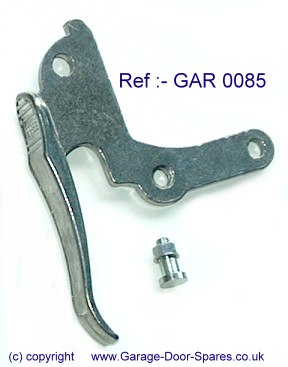

 | 'Lift-up handle' (narrow shank type)
as fitted to Westland Garador's from 1971 to 1984
including Mk1, Mk2, Mk3, Mk3B, Mk3C, Mk3R, Mk4, Mk4V Double type C, Double type R, Welvent, F2, F3C, T/G & S/S
replacement pivot bolt & fitting instructions included.
(for a replacement lock & keys see our ref: GAR0080 below)
Garador Pt No. P173103651
our Ref: GAR0085 Qty in stock:
price: £ inc VAT | |
|
Click image to enlarge

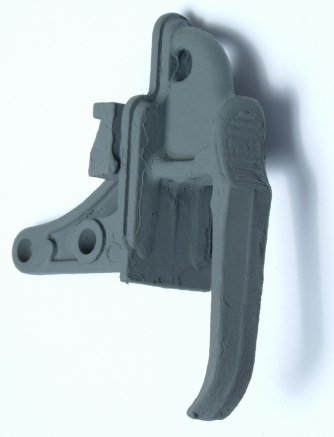

 | 'Lift-up handle' (wide shank type)
as fitted to pre 1971 Westland Garador's
including Mk1, Mk2, Mk3, Mk3B, Mk3C, Welvent, F2, & F3C
discontinued - Click Here for upgrade kit(for a replacement lock & keys see our ref: GAR0080 below) |
|
Click image to enlarge

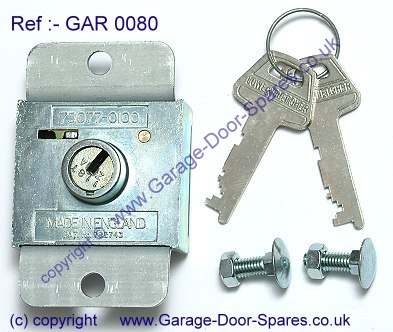

 | Type ZA cabinet lock as fitted to all Garador's
with 'lift-up' type handles, also used on steel
'Georgian' doors with loop type handles
fixing screws, two keys & fitting instructions suppliedGarador Part No. P15LKS11920
our Ref: GAR0080 Qty in stock:
price: £ inc VAT | |
|
Click image to enlarge

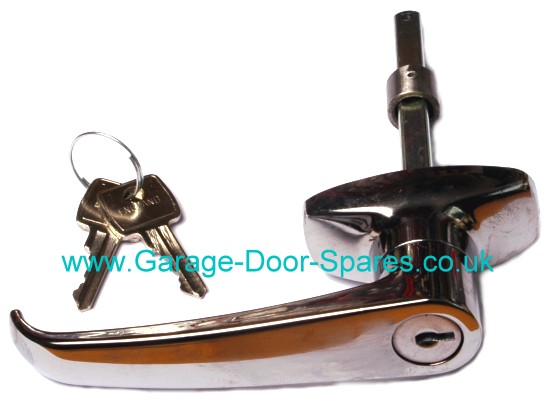

 | Chrome handle to suit pre-1965 Westland Garador's
two threaded fixings at 38mm spacing
Supplied with fixing screws and two keys
our Ref:GAR0070 Qty in stock:
price: £ inc VAT | |
|
Click image to enlarge
 | Replacement latch cable to suit all doors with cable operated locking
Stranded steel wire rope length 3.0Mtr - includes adjuster clamp
our Ref: APL0185 Qty in stock:
price: £ inc VAT (individually)
10% discount for two or moreOur replacement latch cables are supplied as illustrated with a loop pre-formed & crimped on one end only, if you don't require a pre-formed loop you can cut the cable down as required and form your own loop using the clamp provided Note: latch cables must not be used
as canopy door support cables | |
|
