Replacement handles & locks for
Also Wickes, Wessex, Apex & Bonsack garage doors
A range of pattern parts that closely match the original Cardale products

Cardale Garage Doors

Click image to enlarge


Notes:
1/ The handle illustrated is for identification purposes only, the handle we despatch will be an unbranded pattern part with a round lock cylinder.

2/ The 8mm square shaft is pre-drilled with a 4.5mm hole to a depth of 18mm to accept a self tapping fixing screw for the Cardale internal handle types AZSP1018, AZSP1024 & AZSP1308 (see below)

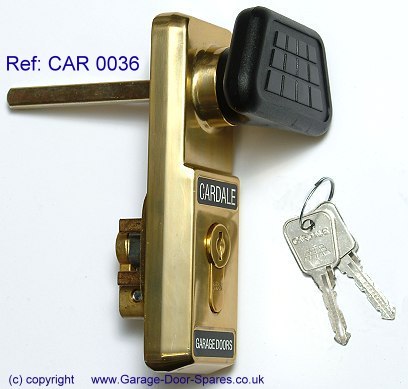

Replacement 'Eurolock' as fitted to Cardale doors
Note: The illustrations show the original handle design as supplied from approx. 1998 to 2002 with the 'keyhole shape' lock barrel but this handle was revised in 2002 and the lock we'll despatch will be the current version as illustrated here

unbranded pattern replacement - colour: black
facia plate dimensions: 134mm x 45mm
Supplied with a round lock cylinder type AZSP1215 and two keys
(for replacement lock barrels for both current & early versions see below)
short spindle type (as fitted to most Cardale doors)
shaft projection from rear of facia plate: 75mm
as Cardale Ref: AZSP1202
Our Ref: CAR0034 / CAR0068

price: £ excl. VAT

long spindle type (as used on double width timber doors)
shaft projection from rear of facia plate: 97mm
as Cardale Ref: AZSP1204
Our Ref: CAR0035 / APC14L

price: £ excl. VAT

Click image to enlarge

Replacement barrel & keys
for the above Euro handle
Replacement 'keyhole shape' Eurolock
cylinder & keys to suit the early type
Eurolock handle as illustrated on right >>


Note: the Cardale Eurolock cylinder & keys pictured left is for identification purposes only, the lock barrel we'll supply will be a good quality pattern replacement with three keys.
Regretfully we are unable to supply
these lock cylinders as keyed alike pairs

Click image to enlarge


Nickel Chrome finish - our ref: APE40N
Discontinued

Brass finish - our ref: APE40B
Discontinued

Dual Finish Brass and Nickel - our ref: MX-D/10/30
price £ excl. VAT






Click image to enlarge

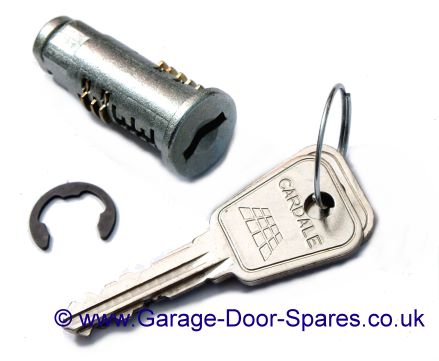

Replacement round type lock cylinder &
keys to suit Cardale Eurolocks with a
round cylinder as illustrated on right only>>
Not suitable for any other type of lock

Nickel Chrome finish.
spare circlip & fitting instructions supplied.
As Cardale ref: AZSP1215.

Click image to enlarge

One cylinder with two keys
(random key profile)

price each £
excl. VAT

Keyed alike cylinders with same key profile (max qty 5)
two keys supplied per cylinder - i.e. 2 cylinders would
be supplied with with 4 keys of the same profile

price per cylinder £
excl. VAT

Click image to enlarge

Locking 'T' Handle as fitted to Cardale doors prior to the
introduction of the 'Eurolock' in the late 90's
(as shown above)
This handle has a 76 x 44mm facia plate with two 13mm long M6 threaded fixing spigots spaced 51mm apart and a 79mm long x 8mm square shaft which can be easily cut down to match the length of your original handle (please note: the square shaft is pre-drilled with a 4.5mm hole to a depth of 18mm to accept a self tapping fixing screw for the Cardale internal handle types AZSP1018, AZSP1024 & AZSP1308, see below)
supplied with M6 fixing screws, foam gasket & two keys
colour: black

As Cardale Part No: AZSP1001
Our Ref: CAR0050

price: £ excl. VAT

Click image to enlarge

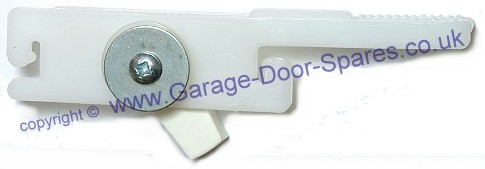

White plastic 2 point latch lever
for Cardale slideaway doors with two point locking
Cardale Part. No. AZSP1018
availabilty: discontinued

Note: The black plastic 3 point latch lever and cam below can be used as an alternative on most Cardale doors that originally used this 2 point latch lever.



Click image to enlarge

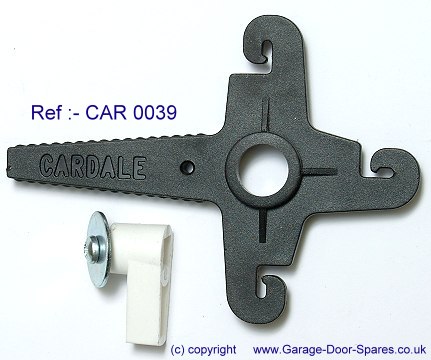

Black plastic 3 point latch lever and cam
for slideaway doors with three point locking

supplied with plastic cam lever, fixing screw & washer

Cardale Part. No. AZSP1024

price: £ excl. VAT



Click image to enlarge

Black plastic 3 point latch lever and cam
for CD45, CD Pro and safelift canopy doors

supplied with plastic cam lever, fixing screw & washer
Note: the illustration shows the current design but it
can be be used as a replacement for the early design
Fitting Instructions (refer to section 6)

Cardale Part. No. AZSP1308

price: £ excl. VAT

Click image to enlarge

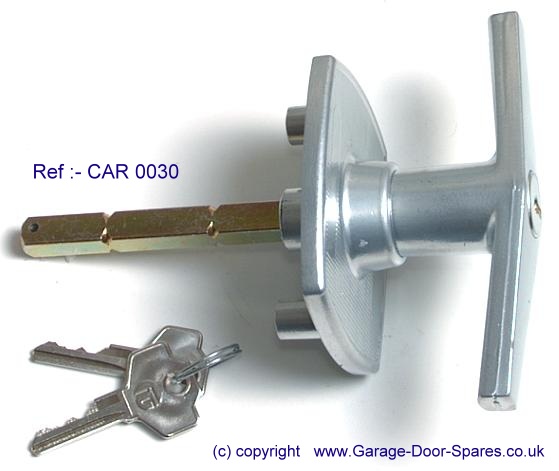

Locking 'T' handle as fitted to early Cardale doors
Has a 70 x 64mm facia plate with two 13mm long M5 threaded fixing spigots spaced 51mm apart and a 84mm long x 8mm square shaft which can be easily cut down to match the length of your original - supplied with two keys - colour: silver grey

Our Ref: CAR0030

price: £
excl. VAT

Click image to enlarge

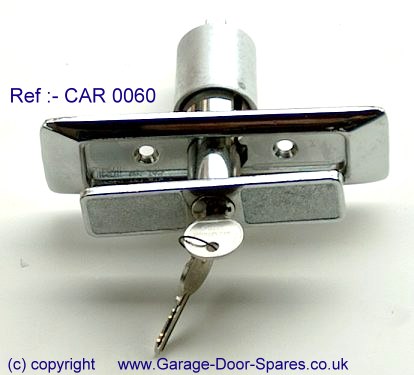

Chrome flush pop-up handle
Suits Mk1 canopy doors with
side mounted drum type springs
127mm x 39mm faceplate with two fixing
holes at 51mm centres - 8mm square shaft

as Cardale Part No.: AZSP1005

Ref: CAR0060
Discontinued


Click image to enlarge

Two point locking cam with outer pivot holes
at 75mm spacing, fits 8mm square lock shaft.
Suits Cardale doors with sliding bar type locking
Grub screw, 8mm pivot pins & starlock fixing washers included

Our Ref: APZ230

price: £ excl. VAT

Click image to enlarge

Black plastic coated steel latch cable
(as used on all Cardale doors manufactured pre-1999
fitted with cable operated latches)

overall dia. 2mm - length 2.5Mtr with adjuster clip

Our Ref: APL018 / SWR0180

price: £ excl. VAT (individually)
10% discount for two or more

Note: our replacement latch cables are supplied as illustrated with a loop pre-formed & crimped on one end only, if you don't require a pre-formed loop you can cut the cable down as required and form your own loop using the clip provided

Click image to enlarge

Stranded steel wire rope latch cable
(as used on all Cardale doors manufactured since 1999)
length 3.0Mtr with adjuster clamp

Our Ref: APL0185 / GS77001503000A

price: £ excl. VAT (individually)
10% discount for two or more

Note: our replacement latch cables are supplied as illustrated with a loop pre-formed & crimped on one end only, if you don't require a pre-formed loop you can cut the cable down as required and form your own loop using the clip provided

Click image to enlarge

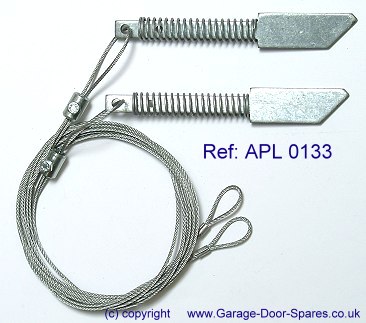

Pair of side latches & cables (pre 2003)
(as used on Cardale slide-away retractable
doors manufactured prior to 2003)
supplied with one pair 3.0Mtr cables & adjuster clamps

Our Ref: APL0133

price per pair: £ excl. VAT

Click image to enlarge

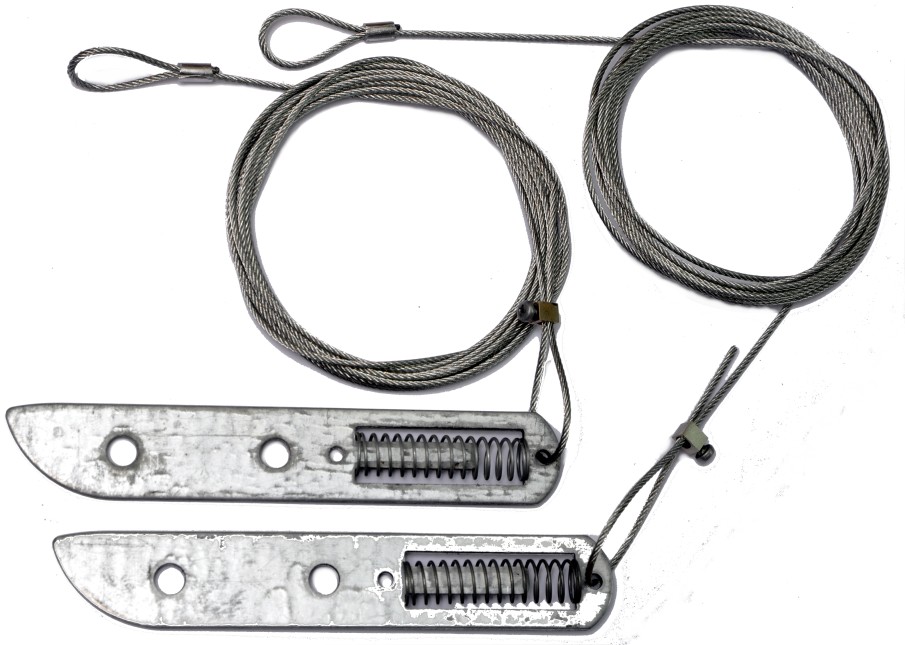

Pair of side latches & cables (post 2003)
(as used on Cardale slide-away retractable
doors manufactured since 2003)

supplied with one pair 3.0Mtr cables & adjuster clamps

Our Ref: APL0134

price per pair: £ excl. VAT

Click image to enlarge

Graphite Lock Lubricating Powder
Graphite powder is a dry compound which is ideal
for lubricating garage door locks, car door locks and
outside padlocks etc. to prevent sticking and extend
the life of the lock by reducing wear and corrosion.
Unlike oil, Graphite powder won't attract a build-up
of dirt & grime and it cannot freeze.

The 50g puffer dispenser with it's pointed probe
ensures quick & simple application to any lock

Our Ref: K30050

price: £ excl. VAT
